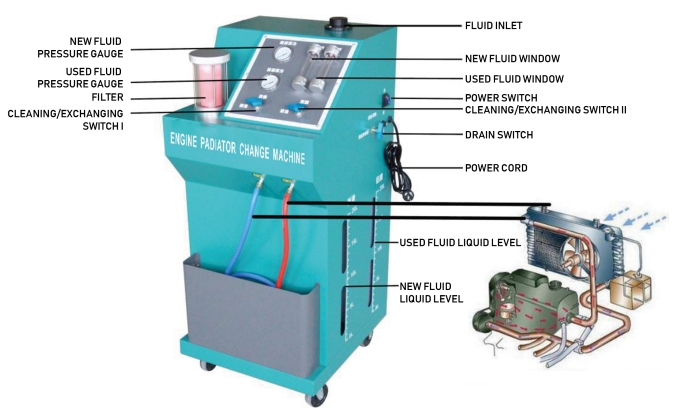

Cooling sysem cleaning machine/engine coolant change machine

II PREPERATION

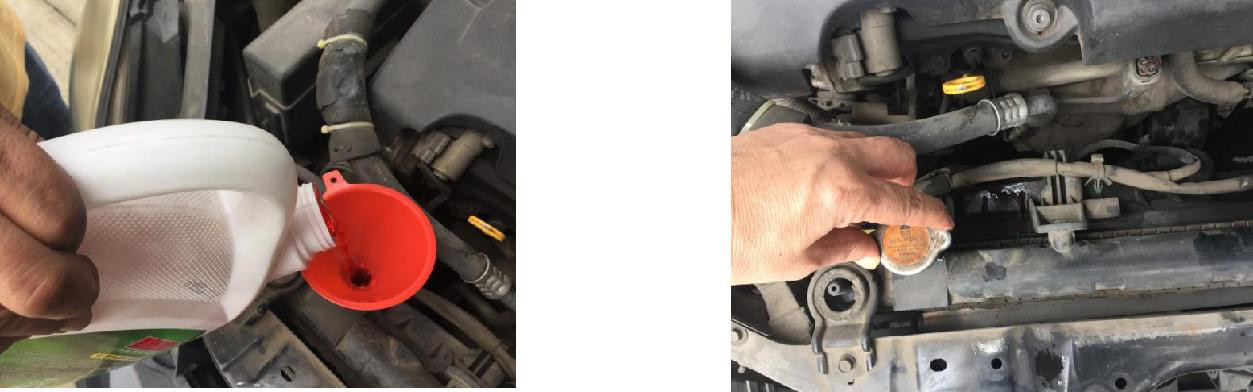

1. Add enough new coolant to the new water tank of the machine.

2. Connect the machine to the power supply

III CLEANING&EXCHANGING

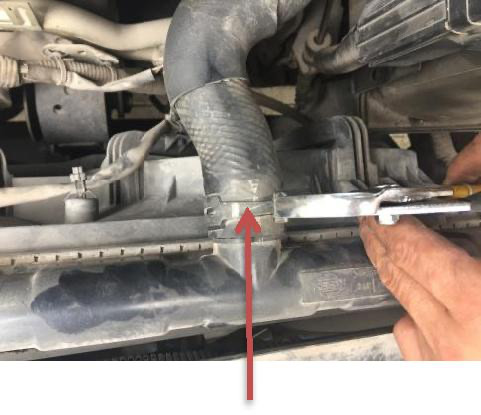

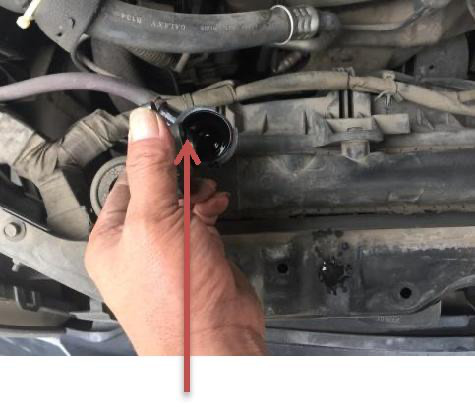

1. After the water tank has cooled down, open the water tank cover and find the upper pipe on the car water tank.

2. Find the same hose and connector as the water tank interface in the attached connector box.

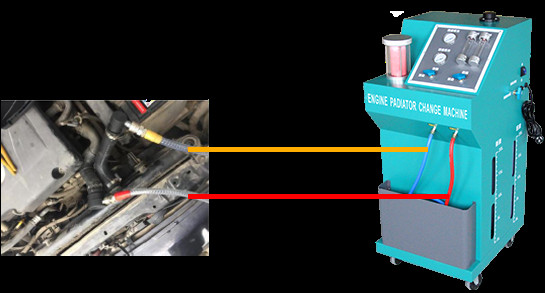

3. Connect the machine to the joint, pay attention to the direction of liquid in and out.

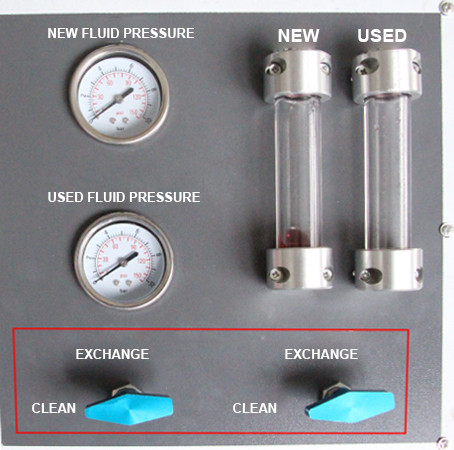

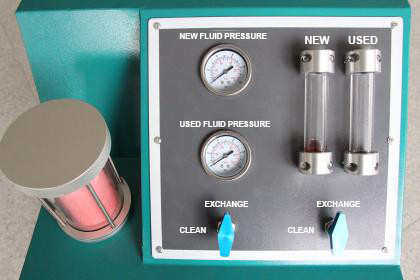

4.COOLING SYSTEM CLEANING Prepare water tank cleaner and new coolant. Turn switch to CLEAN Start the engine After observing liquid in the return pipe. Press the power switch to start the machine and start cleaning. After cleaning, turn off the engine and machine.

After observing liquid in the return pipe. Press the power switch to start the machine and start cleaning. After cleaning, turn off the engine and machine.

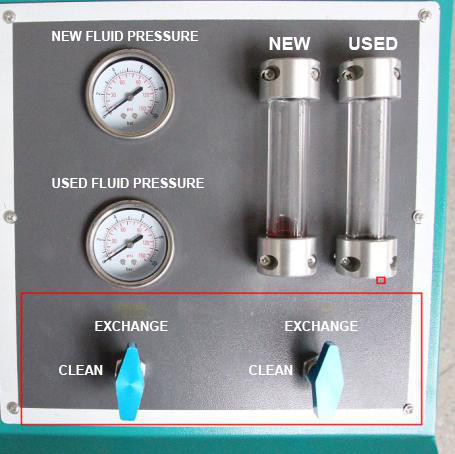

5. COOLAND EXCHANGING Turn switch to EXCHANGE Start the engine After observing liquid in the return pipe. Press the power switch to start the machine and start the replacement. Pay attention to the observation window during exchanging. When the liquid colors of the new and used liquid windows are the same, the liquid change is complete, turn off the engine machine.

6. Replenish the coolant Restore cooling system upper pipe. Add coolant to the proper level in the coolant tank, screw on the lid, and test the vehicle for one minute. If there is no leakage, the operation is over.
